MCA9 – MCE9 Models

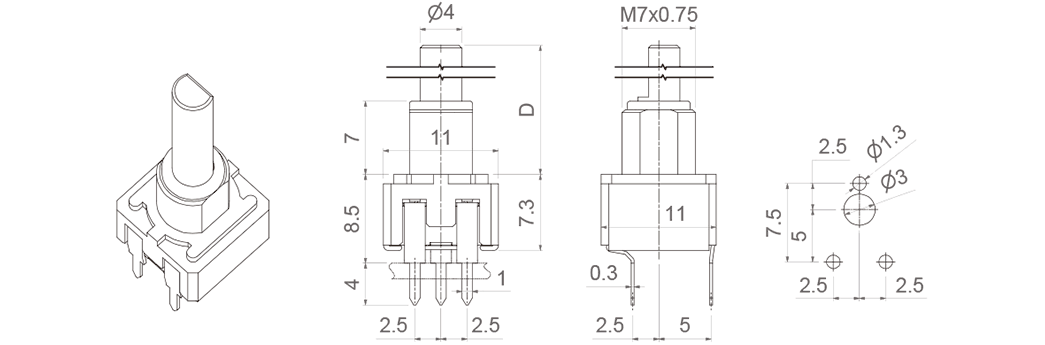

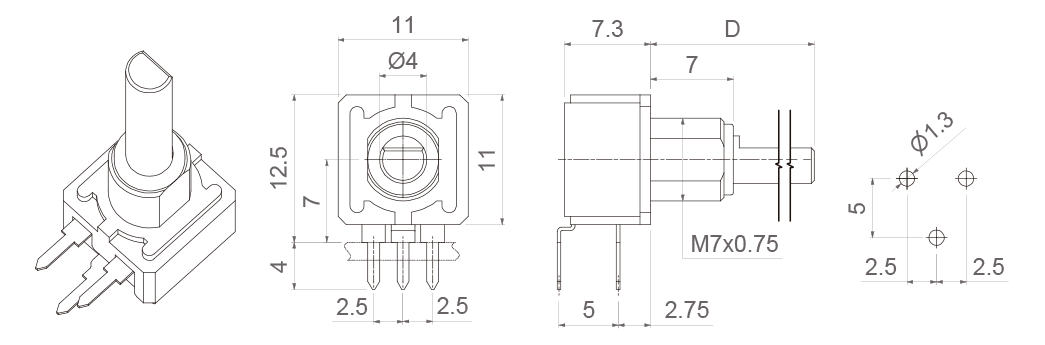

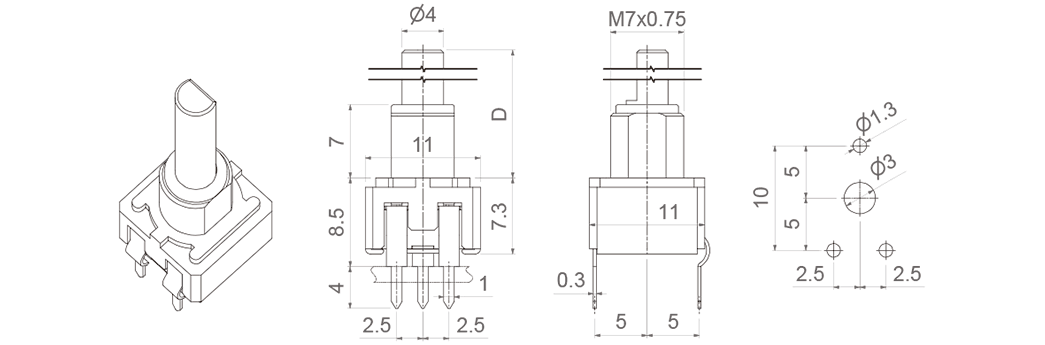

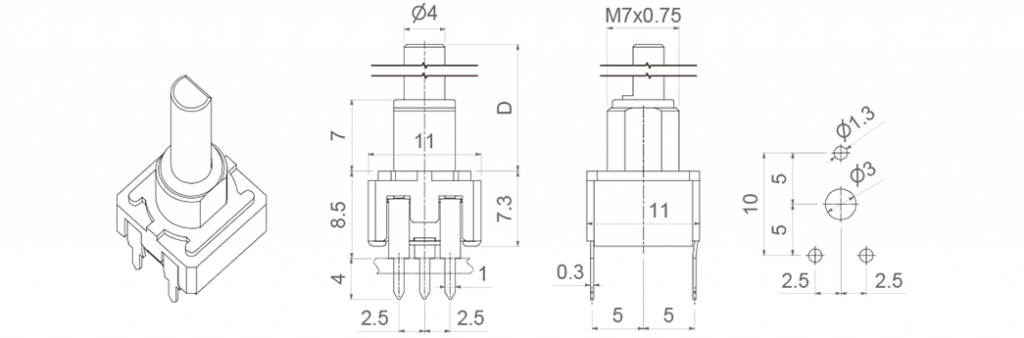

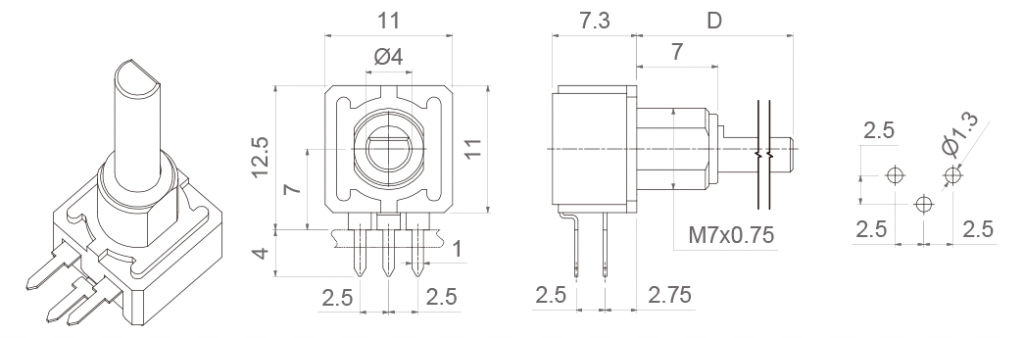

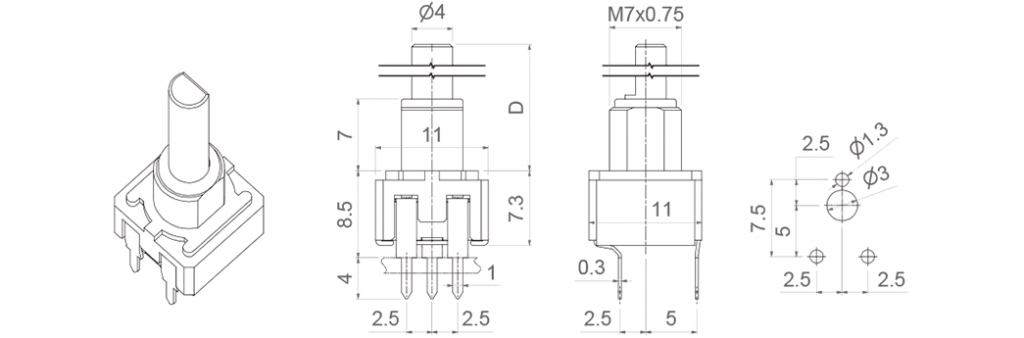

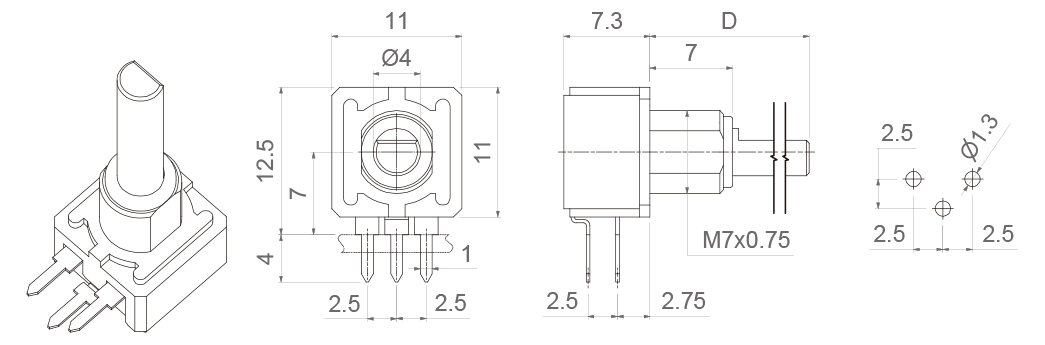

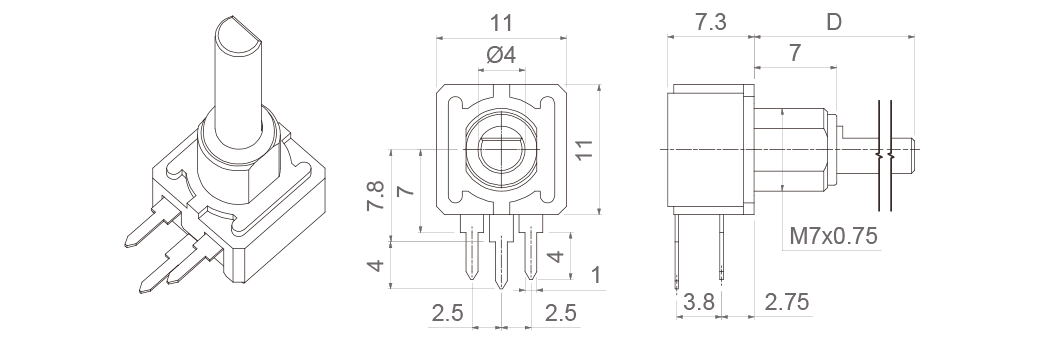

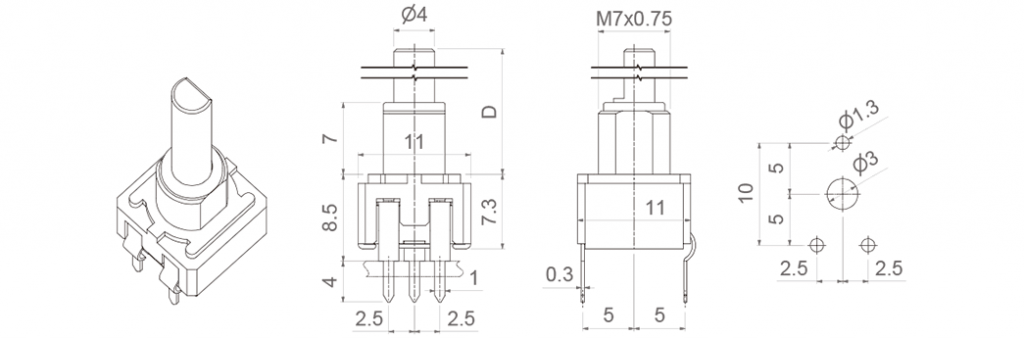

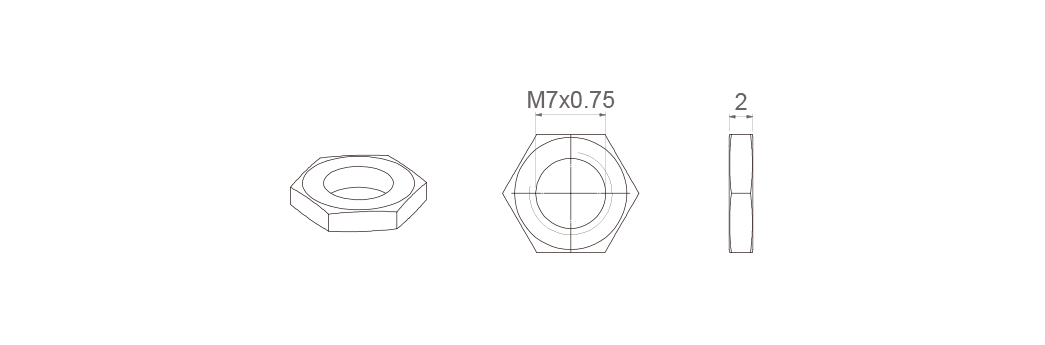

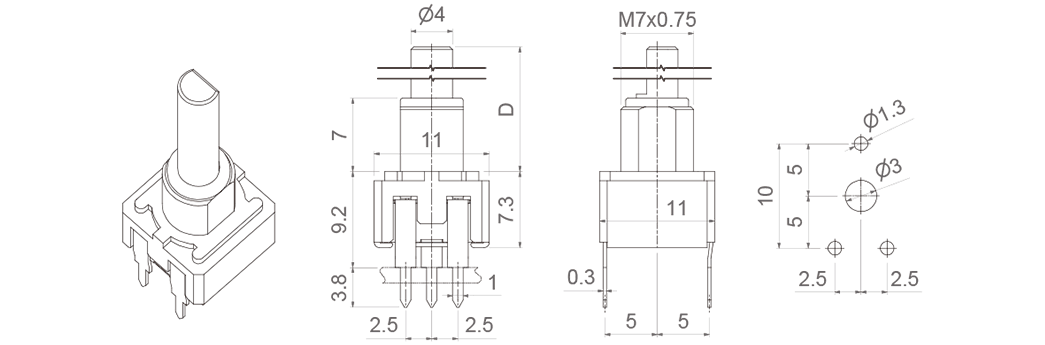

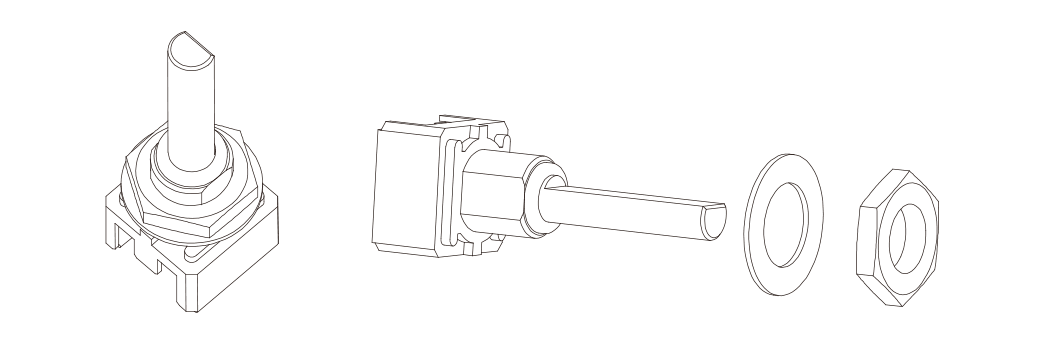

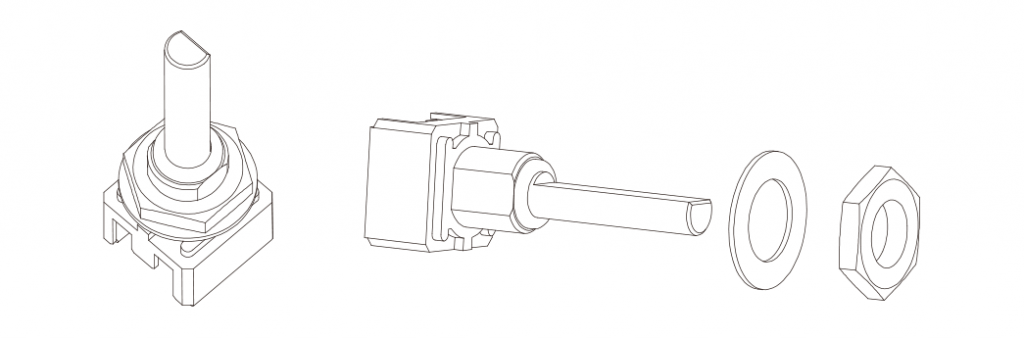

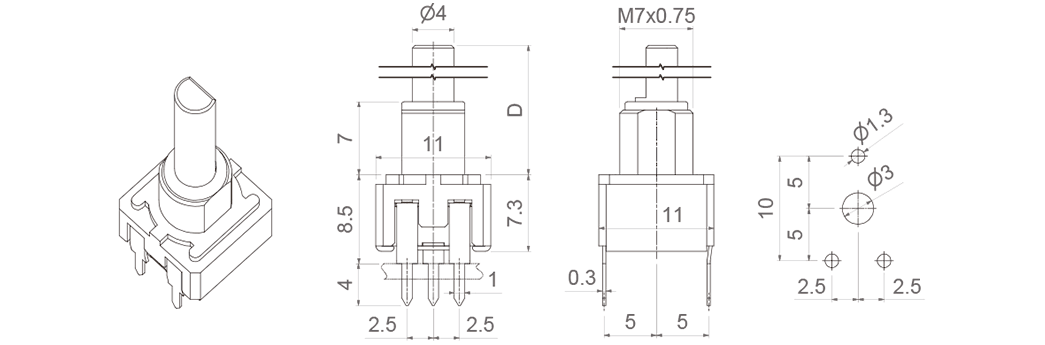

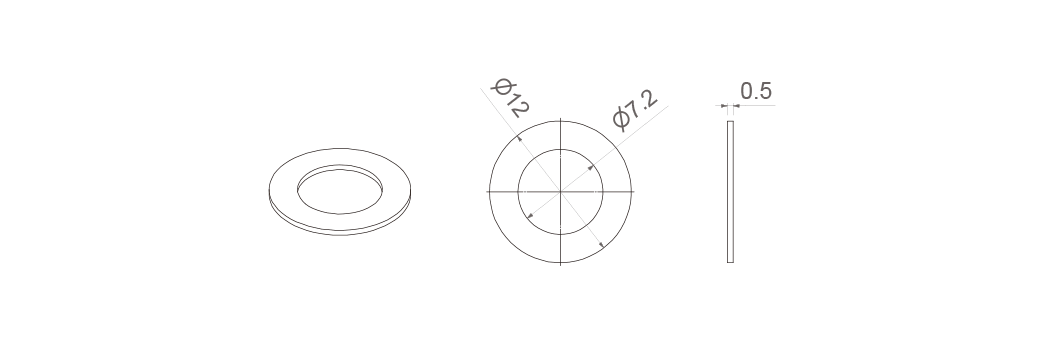

All models shown here have shaft 9020, but other shafts can be chosen from the shafts section. The D dimension indicated on the drawings refers to the possible length of the shaft, to be chosen at “shafts” section. Potentiometers are sold separately from the nuts and washers.
