Shafts are available in different colors (color chart in “how to order” section) and with self-extinguishable property, according to UL 94 V-0, under request. ACP can study special shaft designs.
Shafts can be sold separately or delivered already mounted on the potentiometer at ACP.

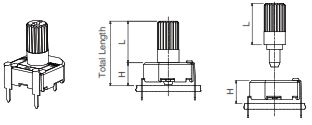

When a shaft is mounted on a potentiometer, the distance from the top of the potentiometer to the top of the shaft is marked with “L” in
the table below, as shown in the drawings:
V potentiometer + shaft
| Shaft | 14117 | 14081 | 14187 | 14251 | 14067 | 14084 | 14250 | 14072 | 14073 |
| L Dimension | 11.70 | 18.25 | 18.75 | 18.75 | 27.75 | 23.50 | 25.00 | 31.75 | 38.50 |

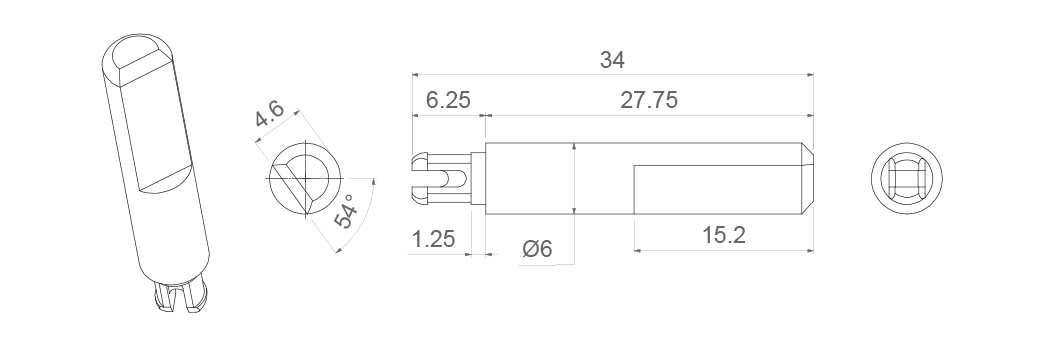

14067

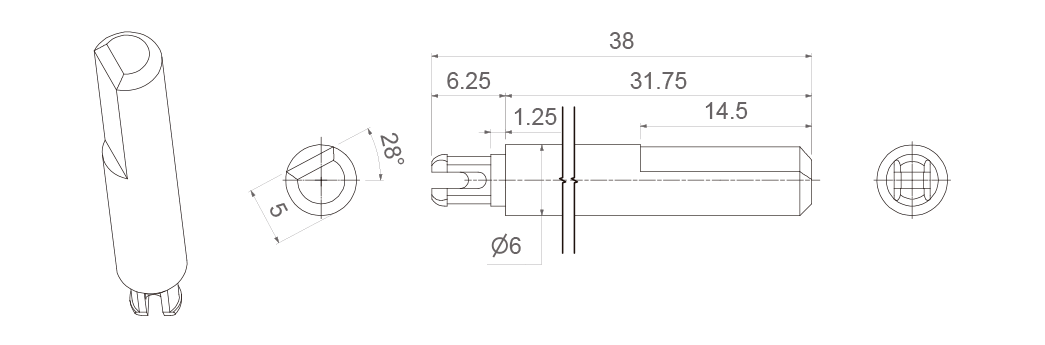

14072

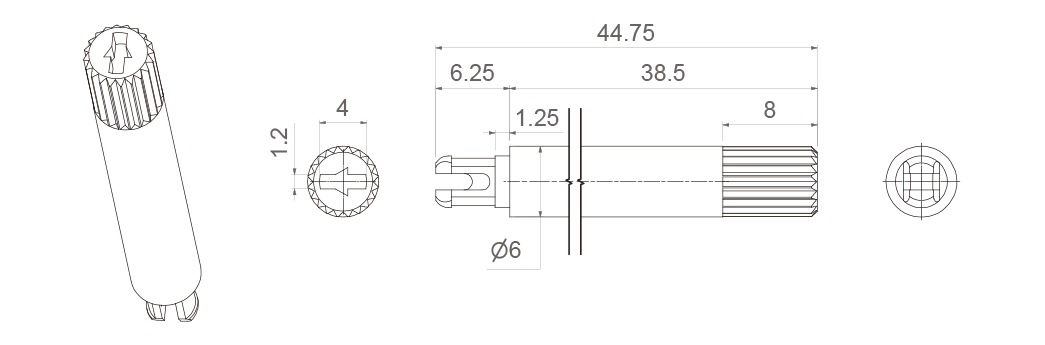

14073

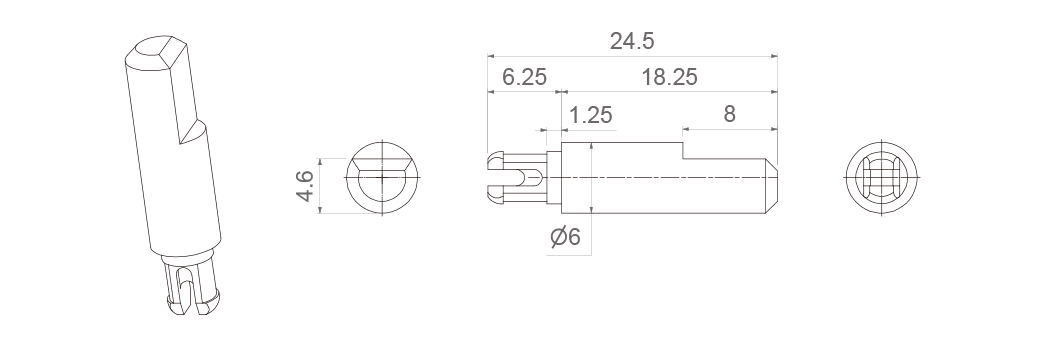

14081

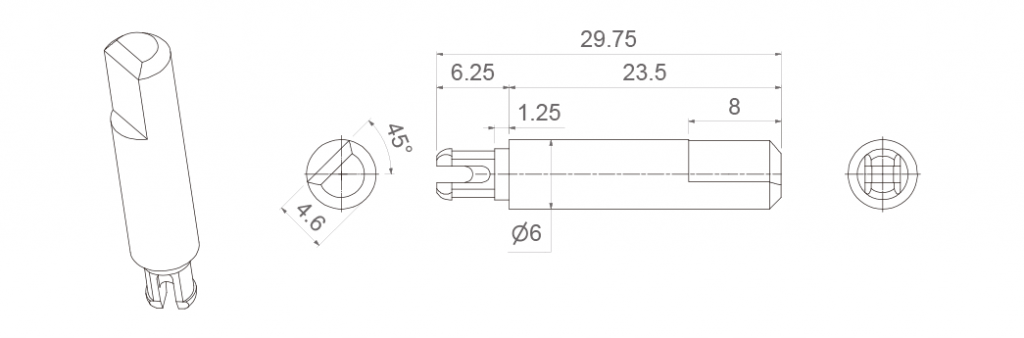

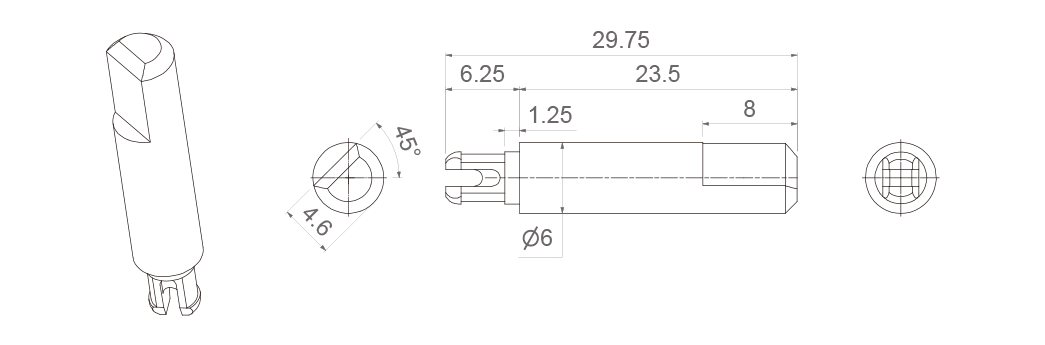

14084

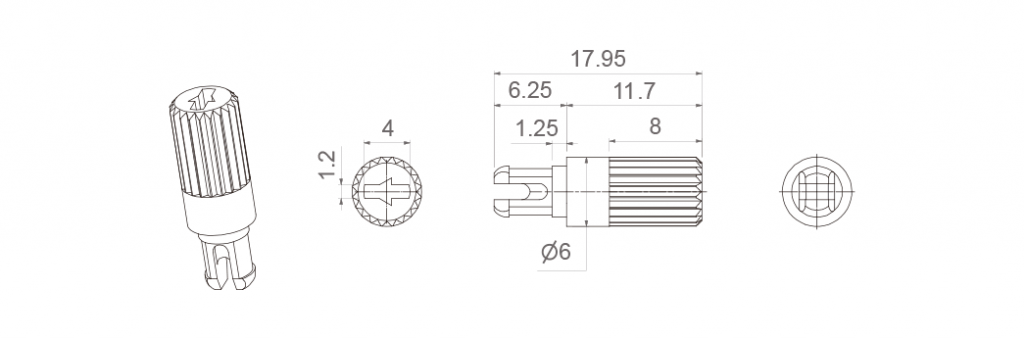

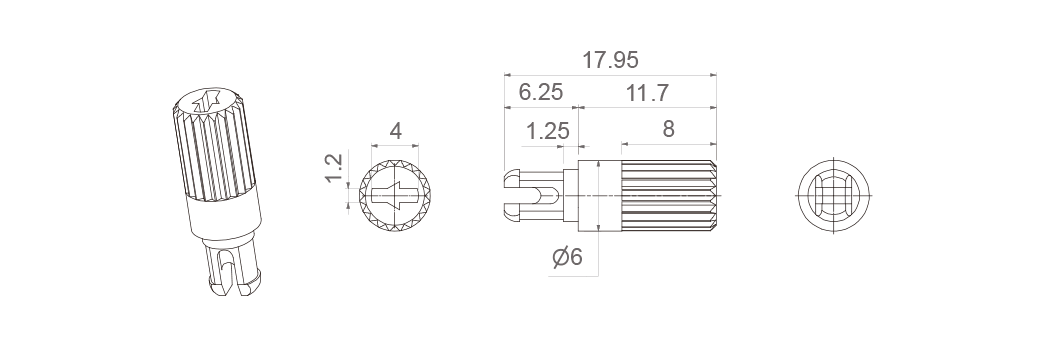

14117

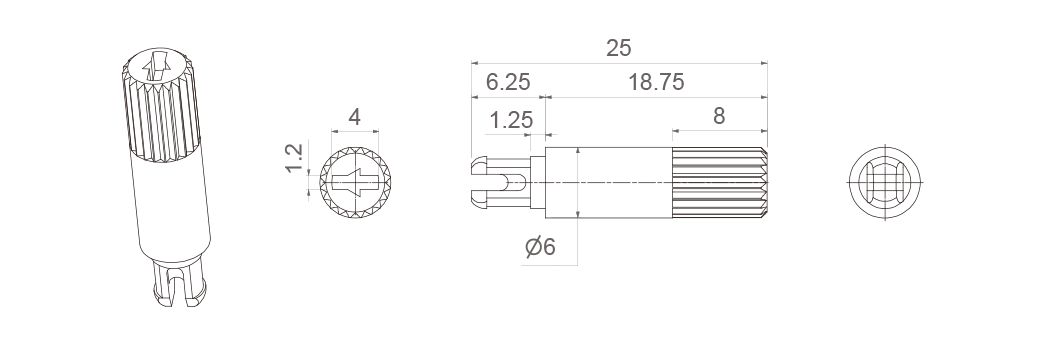

14187

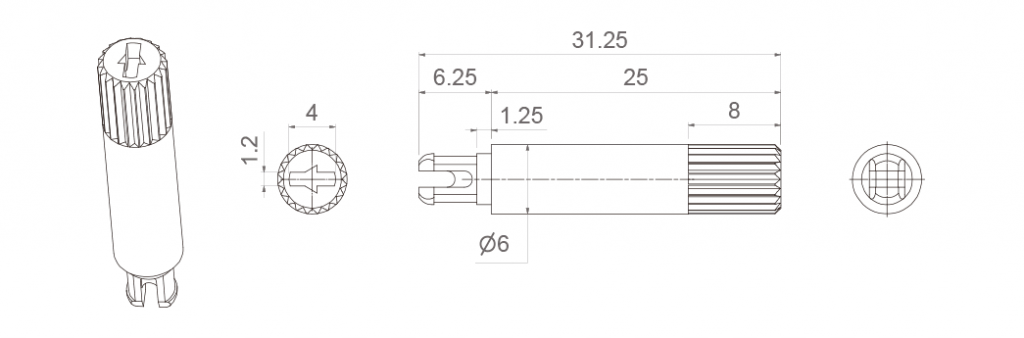

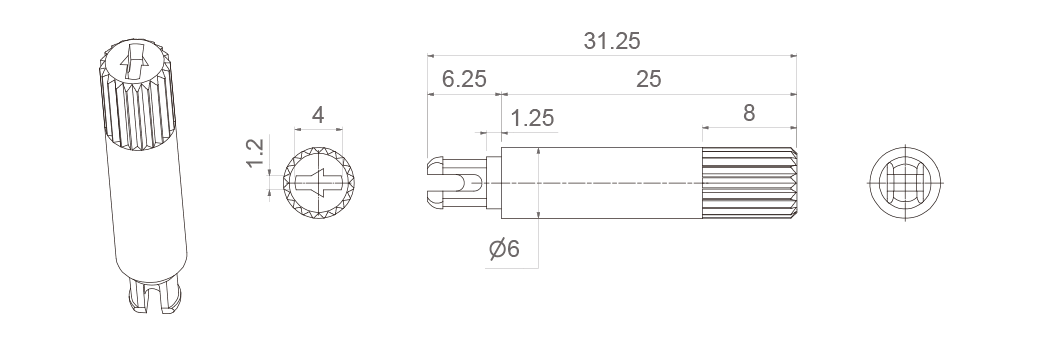

14250

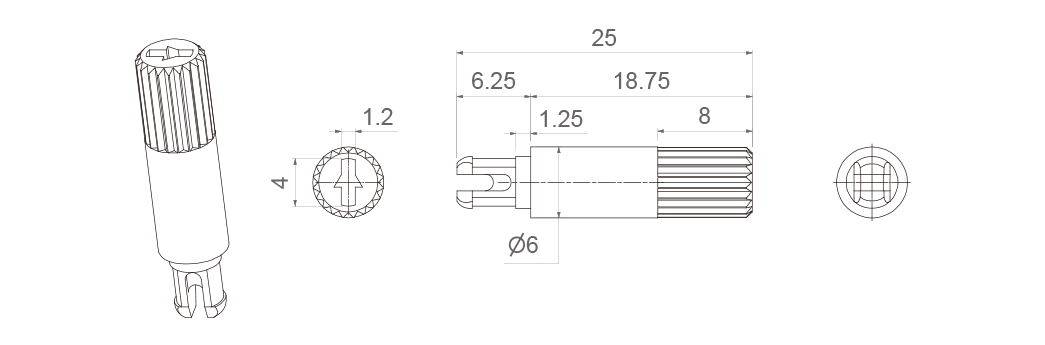

14251
