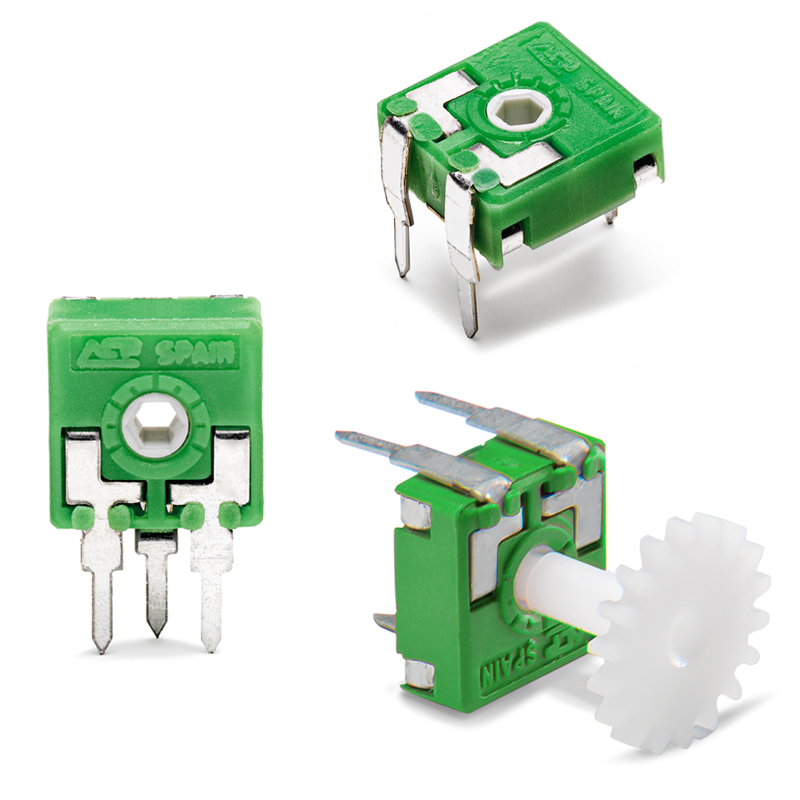

ACP Position Sensors are available in carbon technology for 9 and 14mm. From 50.000 cycles up to 250.000cycles depending on the product size. Under particular conditions and prior study we can extend the mechanical life of the product up to 1Mcycles
THT and SMD versions are available for the different sizes. Independent Linearity, Abosolute Linearity, Resistance ranges out of specification, special operating Tª, product customization… ACP adapts itself to the most demanding customer needs, providing reliable and high quality Position Sensors
Commonly used as voltage divider for feedback position sensing or extended life control potentiometer within Industrial, Automotive or Building Automation markets
Image | Series | Size | Technology | PCB Mounting | Resistance Range | Max. Power Dissipation (50°C) | Mechanical Life | Operating Tª | Downloads |
|---|---|---|---|---|---|---|---|---|---|

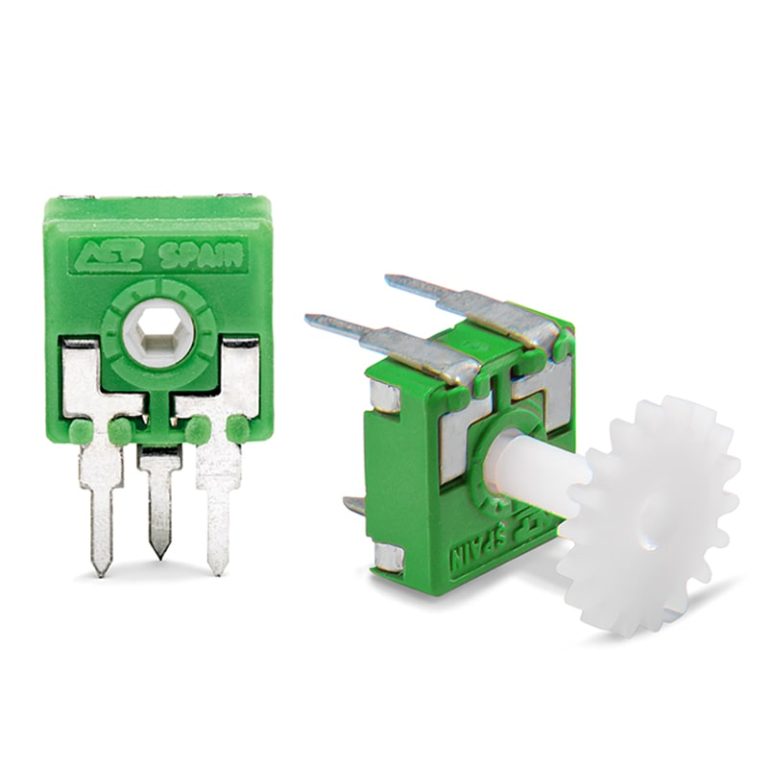

 | 9mm | Carbon (CA) | THT, SMD | Standard: 10K (others inquiry) | 0.15W | Up to 200.000 cycles | -25°C…+70°C (+85°C inquiry) | ||

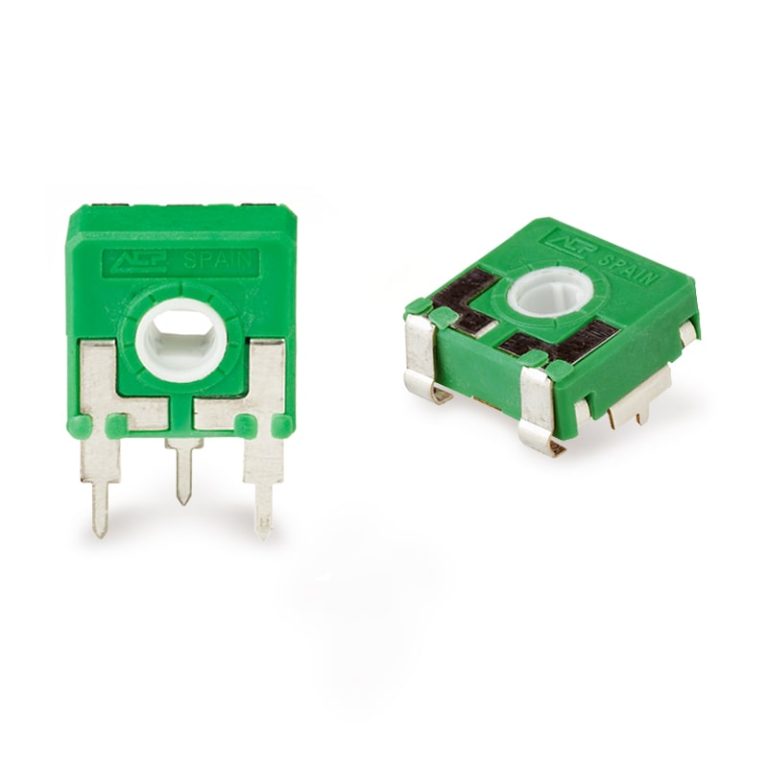

 | 14mm | Carbon (CA) | THT, SMD | Standard: 10K (others inquiry) | 0.15W | Up to 250.000 cycles | -25°C…+70°C (+85°C inquiry) | ||

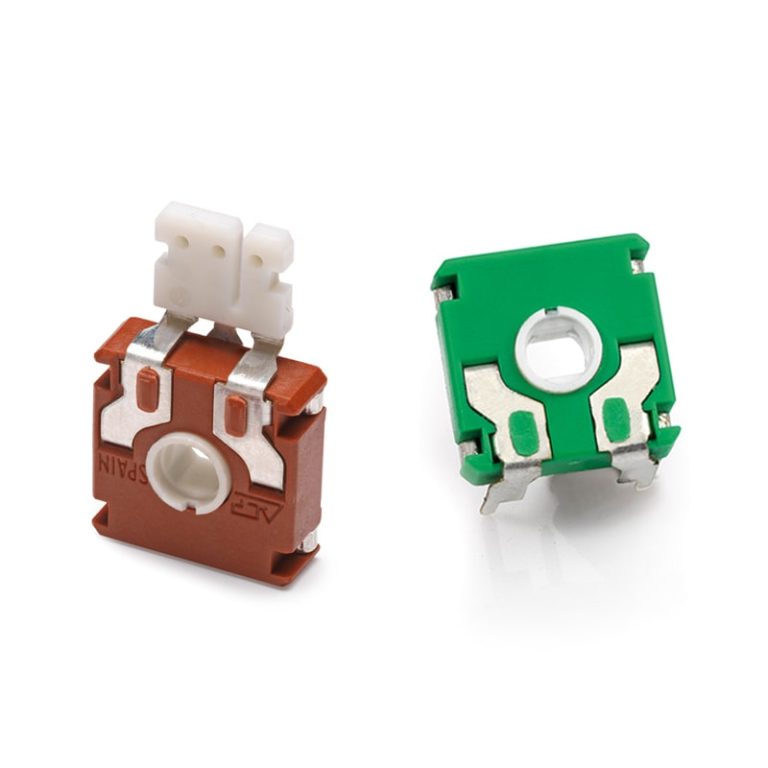

 | 14mm | Carbon (CA) | THT, SMD | Standard: 10K (others inquiry) | 0.15W | Up to 250.000 cycles | -25°C…+70°C (+85°C inquiry) | ||

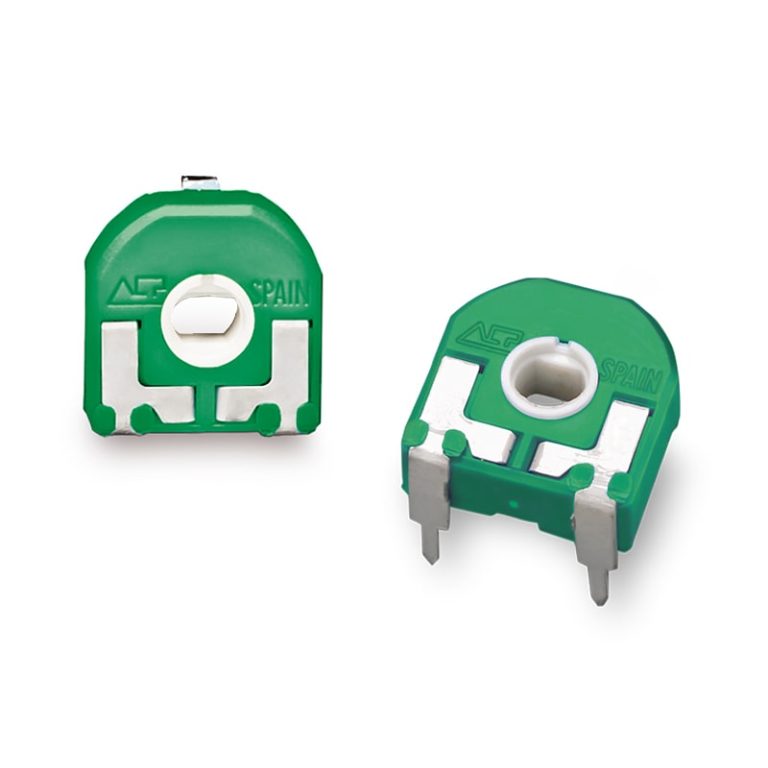

 | 14mm | Carbon (CA) | THT, SMD, Pluggable | Standard: 10K (others inquiry) | 0.15W | Up to 250.000 cycles | -25°C…+70°C (+85°C inquiry) |
