Rotary switches are available in all the different models already existing for potentiometers: 6, 9, and 14mm, in carbon and cermet technologies. Please refer to those sections to choose the external configuration of your switch.
ACP’s Rotary switches are based on the design of the potentiometers: they have one input and two possible outputs. The commuting angle between outputs can be customized.
Through-hole and SMD configurations are available. Thumbwheels and shafts can be provided either separately or already inserted in the switch. Our switches can be manufactured in a wide range of possibilities according to customer needs.
Applications
– Dimmers.
– Telecommunications (antenna control).
Image | Series | Size | Technology | PCB Mounting | Resistance At "On" Position | Dielectric Strength | Power Ratio | Operating Tª | Downloads |
|---|---|---|---|---|---|---|---|---|---|

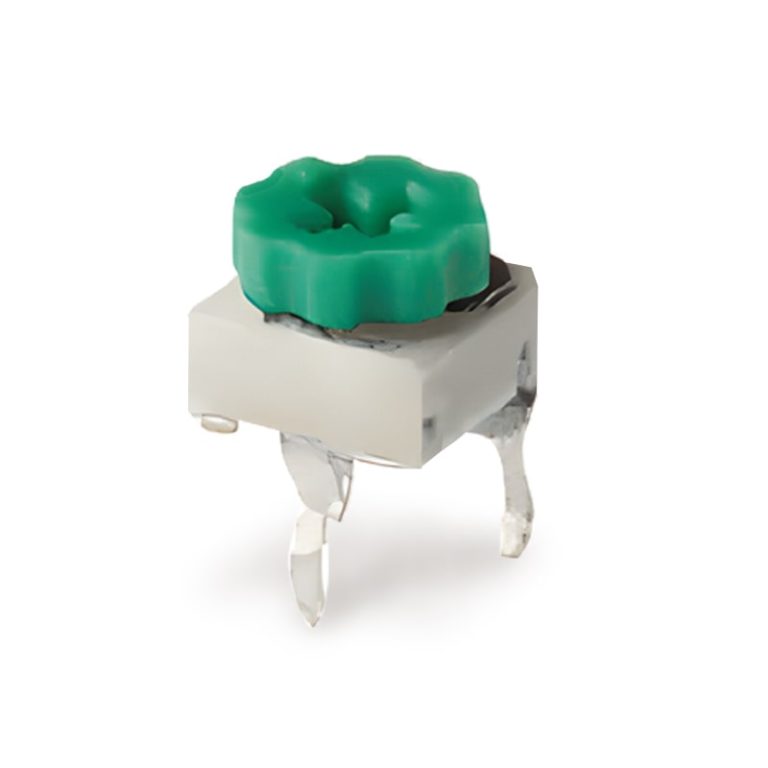

 | 6mm | Carbon (CA) | THT, SMD | 5Ω | 600V | 15V / 12mA | -25°C…+70°C (+85°C inquiry) | ||
 | 9mm | Carbon (CA) | THT, SMD | 5Ω | 1500V | 24V / 12mA | -25°C…+70°C (+85°C inquiry) | ||

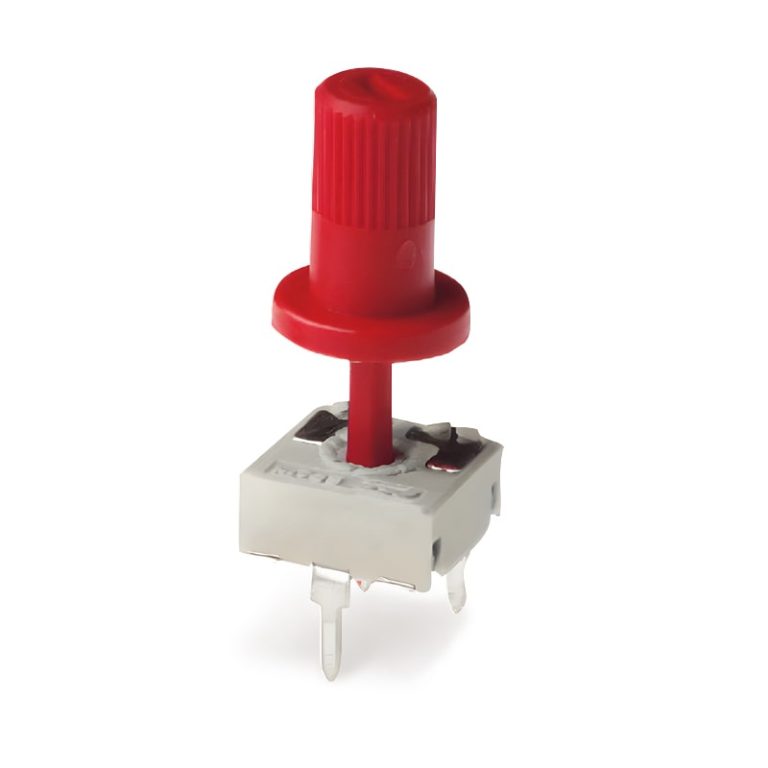

 | 9mm | Cermet (CE) | THT, SMD | 5Ω | 1500V | 24V / 12mA | -25°C…+70°C (+125°C inquiry) | ||

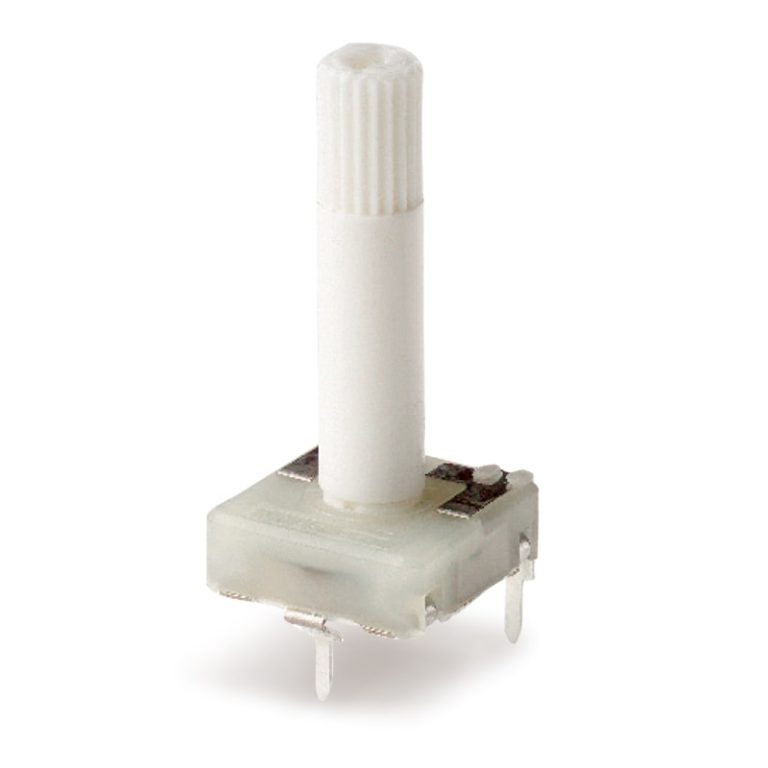

 | 14mm | Carbon (CA) | THT, SMD | 5Ω | 1500V | 24V / 12mA | -25°C…+70°C (+85°C inquiry) | ||

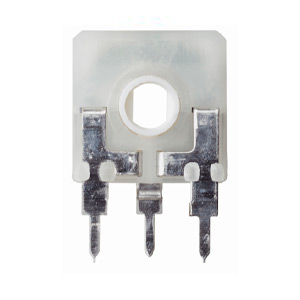

 | 14mm | Cermet (CE) | THT, SMD | 5Ω | 1500V | 24V / 12mA | -25°C…+70°C (+125°C inquiry) |
